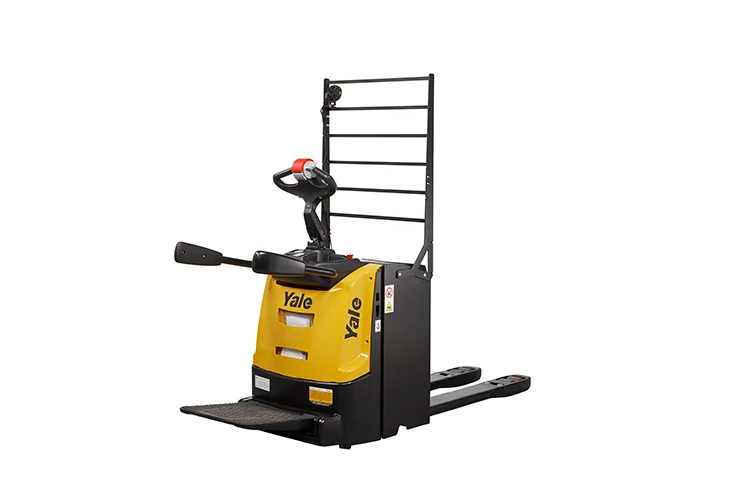

Platform Low Lift Pallet Truck
Designed around the needs of the operator
MODELS
MP20-30X
CAPACITY
2000-3000kg
Provides performance enhancing options and standard features that increase productivity and reduces operational costs.
- Increased productivity
- Ergonomic tiller head and controls
- Large operator platform
- Exceptional manoeuvrability
- Maintenance free
Platform Low Lift Pallet Truck
Designed around the needs of the operator
MODELS
MP20-30X
CAPACITY
2000-3000kg
Provides performance enhancing options and standard features that increase productivity and reduces operational costs.
- Increased productivity
- Ergonomic tiller head and controls
- Large operator platform
- Exceptional manoeuvrability
- Maintenance free
INDUSTRY SECTORS
Ideal for loading or unloading trailers around the dockside, or order picking in warehouses.
GET A QUOTE
Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.
INDUSTRY SECTORS
Ideal for loading or unloading trailers around the dockside, or order picking in warehouses
GET A QUOTE
Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.
The MPX Series enables dependable, efficient movement of loads at every stage of horizontal pallet handling and it’s also Lithium-ion ready
Provides performance enhancing options and standard features that increase productivity and reduces operational costs.
Increased productivity
The maintenance-free motor (inspection intervals required every 1000 operating hours) provides low-cost long operating life. The lifting motor is DC compound, providing power for the truck’s operative requirements.
Ergonomic tiller head and controls
The tiller head has an ergonomic shaped handle with integral hand guard and spring assisted to return automatically to the vertical position. Whilst the large, low-effort butterfly buttons control travel direction, speed and the electromagnetic brake.
Large operator platform
The large operator platform allows the operator to find their own comfortable driving position and has an “operator on board” sensor, preventing truck operation when no driver is present
Maintenance free
The maintenance-free motor (inspection intervals required every 1000 operating hours) provides low-cost long operating life. The lifting motor is DC compound, providing power for the truck’s operative requirements.
Model
Load Capacity
Lift Height
Battery Capacity
Weight
MP20X
2000kg
120mm
24V / 210 - 500Ah(V/Ah)
678kg
MP20X platform with rear protection
2000kg
120mm
24V / 210 - 500Ah(V/Ah)
807kg
MP20X platform with side protection
2000kg
120mm
24V / 210 - 500Ah(V/Ah)
823kg
MP25X platform with rear protection
2500kg
120mm
24V / 315-500Ah(V/Ah)
824kg
MP25X
2500kg
120mm
24V / 315-500Ah(V/Ah)
785kg
MP25X platform with side protection
2500kg
120mm
24V / 315-500Ah(V/Ah)
840kg
M30X platform with side protection
3000kg
120mm
24V / 315-500Ah(V/Ah)
840kg
M30X
3000kg
120mm
24V / 315-500Ah(V/Ah)
785kg
M30X platform with rear protection
3000kg
120mm
24V / 315-500Ah(V/Ah)
824kg
The MPX Series enables dependable, efficient movement of loads at every stage of horizontal pallet handling and it’s also Lithium-ion ready
Provides performance enhancing options and standard features that increase productivity and reduces operational costs
Increased productivity
Impressive acceleration up to 13km/h unladen and 9.7km/h laden on the 2.0T and 2.5T trucks, combined with progressive speed reduction, allows operators to move loads quickly and efficiently.
Ergonomic tiller head and controls
The tiller head has an ergonomic shaped handle with integral hand guard and spring assisted to return automatically to the vertical position. Whilst the large, low-effort butterfly buttons control travel direction, speed and the electromagnetic brake.
Large operator platform
The large operator platform allows the operator to find their own comfortable driving position and has an “operator on board” sensor, preventing truck operation when no driver is present
Maintenance free
The maintenance-free motor (inspection intervals required every 1000 operating hours) provides low-cost long operating life. The lifting motor is DC compound, providing power for the truck’s operative requirements.
Model
Load Capacity
Lift Height
Battery Capacity
Weight
MP20X
2000kg
120mm
24V / 210 - 500Ah(V/Ah)
678kg
MP20X platform with rear protection
2000kg
120mm
24V / 210 - 500Ah(V/Ah)
807kg
MP20X platform with side protection
2000kg
120mm
24V / 210 - 500Ah(V/Ah)
823kg
MP25X platform with rear protection
2500kg
120mm
24V / 315-500Ah(V/Ah)
824kg
MP25X
2500kg
120mm
24V / 315-500Ah(V/Ah)
785kg
MP25X platform with side protection
2500kg
120mm
24V / 315-500Ah(V/Ah)
840kg
M30X platform with side protection
3000kg
120mm
24V / 315-500Ah(V/Ah)
840kg
M30X
3000kg
120mm
24V / 315-500Ah(V/Ah)
785kg
M30X platform with rear protection
3000kg
120mm
24V / 315-500Ah(V/Ah)
824kg
YALE VISION TELEMETRY
Complete fleet
visibility
and control
Yale Vision provides real-time monitoring of virtually any piece of mobile equipment. The solution offers easy-to-use dashboards and analytics to manage cost, optimize productivity and protect assets.
