REACH TRUCK WITH MOVING MAST
Reach Higher
MODELS
MR14-16HD
CAPACITY
1400-1600kg
The next level in reach truck productivity, delivered through innovation, technology and ergonomic design.
- Low Cost of Ownership
- Robust Mast Design
- East of Operation
- Practical Operator Compartment
- Ergonomic Controls
REACH TRUCK WITH MOVING MAST
Reach Higher
MODELS
MR14-16HD
CAPACITY
1400-1600kg
The next level in reach truck productivity, delivered through innovation, technology and ergonomic design.
- Low Cost of Ownership
- Robust Mast Design
- East of Operation
- Practical Operator Compartment
- Ergonomic Controls
INDUSTRY SECTORS
- 3PL & Warehousing
- Auto & Transportation Manufacturing
- Auto Parts Distribution Beverage
- Chemicals & Plastics
- Cold & Frozen Foods
- Food Processing
- Furniture & Furnishings
- General Manufacturing
- Home Centers & Other Durables
- Rental Stores
- Retail & E-Commerce (DC/Fulfillment)
GET A QUOTE
Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.
INDUSTRY SECTORS
- 3PL & Warehousing
- Auto & Transportation Manufacturing
- Auto Parts Distribution
Beverage
- Chemicals & Plastics
- Cold & Frozen Foods
- Food Processing
- Furniture & Furnishings
- General Manufacturing
- Home Centers & Other Durables
- Rental Stores
- Retail & E-Commerce (DC/Fulfillment)
GET A QUOTE
Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.
PERFORMANCE AND PRECISION TO NEW HEGIHTS
Superior technology for reduced cycle times and precision
Responsive and precise performance
To move more loads per hour, fast cycle times are essential. That’s why we’ve increased the MR’s mast speed to 0.8 metres per second with masts lifting up to 9.5m.
But, power without control is not efficient. From adjustable speed reduction on cornering, auto regenerative braking and creep speed select, the MR series puts your operator in total control.
Focused thinking
For operators, constantly having to adjust their line of sight is time consuming, which is why the MR series models feature high visibility masts and overhead guards, which offer operator protection whilst offering excellent upward and all round visibility, without any compromise to its strength or security.
Comfortably better

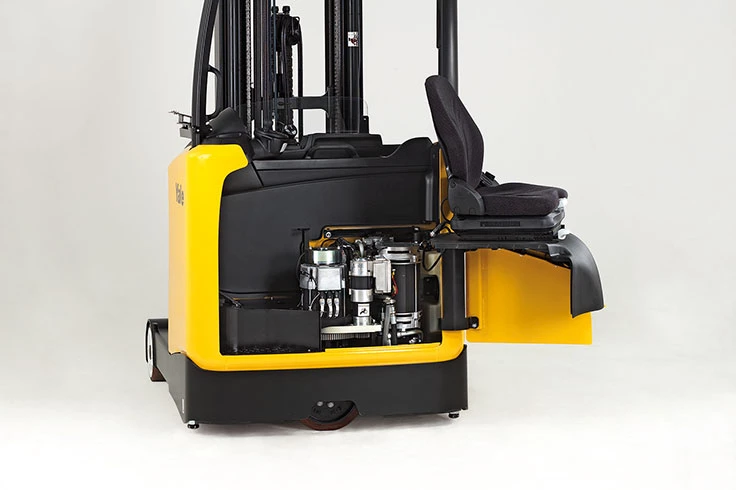

The low, wide step, integrated grab handles and an adjustable steering column support easy access. A full suspension adjustable seat with integral lumbar support dramatically reduces whole body vibration; while wide spaced floor pedals provide increased leg room and a more comfortable operating position.
Made to perform
Integrated grab handle on the left hand on the overhead guard post and for the right hand underneath the arm rest.
AccuTouch mini-lever module:
- Maximum hydraulic control operator familiarity
- Additional function buttons integrated into the adjustable armrest
Build to last
- Heavy-duty mast design delivers high residual capacities and stable load handling.
- High visibility mast provides outstanding upward and all round visibility.

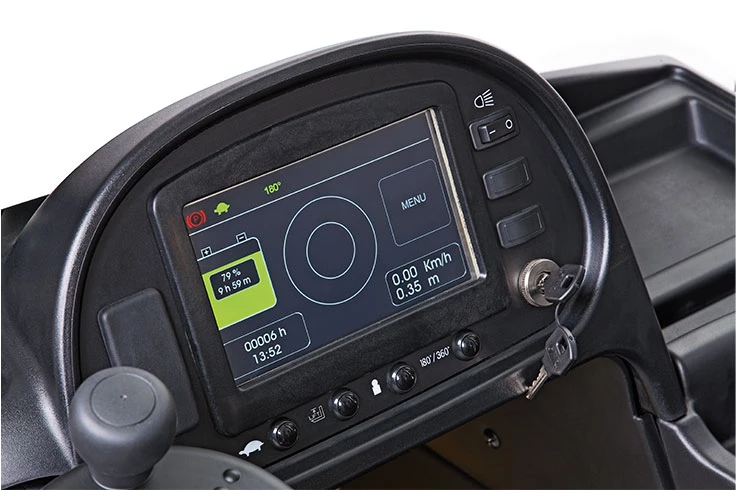

- Touch screen display provides PIN access, height preselect, creep speed selection.
Model
Load Capacity
Lift Height
Battery Capacity
Weight
MR14HD
1400kg
10063mm
48V / 465-775Ah(V/Ah)
3112kg
MR16HD
1600kg
10063mm
48V / 465-775Ah(V/Ah)
3162kg
PERFORMANCE AND PRECISION TO NEW HEGIHTS
Superior technology for reduced cycle times and precision
Responsive and precise performance
To move more loads per hour, fast cycle times are essential. That’s why we’ve increased the MR’s mast speed to 0.8 metres per second with masts lifting up to 9.5m.
But, power without control is not efficient. From adjustable speed reduction on cornering, auto regenerative braking and creep speed select, the MR series puts your operator in total control.
Focused thinking
For operators, constantly having to adjust their line of sight is time consuming, which is why the MR series models feature high visibility masts and overhead guards, which offer operator protection whilst offering excellent upward and all round visibility, without any compromise to its strength or security.
Comfortably better
The low, wide step, integrated grab handles and an adjustable steering column support easy access. A full suspension adjustable seat with integral lumbar support dramatically reduces whole body vibration; while wide spaced floor pedals provide increased leg room and a more comfortable operating position.
Made to perform
Integrated grab handle on the left hand on the overhead guard post and for the right hand underneath the arm rest.
AccuTouch mini-lever module:
- Maximum hydraulic control operator familiarity
- Additional function buttons integrated into the adjustable armrest
Build to last
- Heavy-duty mast design delivers high residual capacities and stable load handling.
- High visibility mast provides outstanding upward and all round visibility.
- Touch screen display provides PIN access, height preselect, creep speed selection.
Model
Load Capacity
Lift Height
Battery Capacity
Weight
MR14HD
1400kg
10063mm
48V / 465-775Ah(V/Ah)
3112kg
MR16HD
1600kg
10063mm
48V / 465-775Ah(V/Ah)
3162kg
YALE VISION TELEMETRY
Complete fleet
visibility
and control
Yale Vision provides real-time monitoring of virtually any piece of mobile equipment. The solution offers easy-to-use dashboards and analytics to manage cost, optimize productivity and protect assets.
